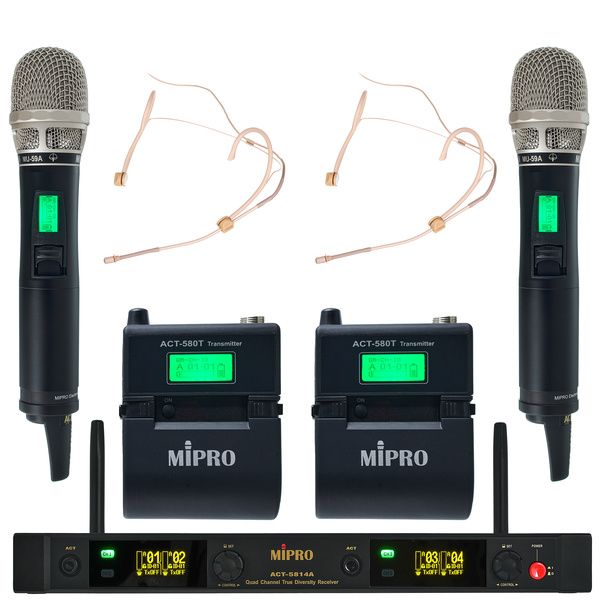

Mipro ACT-5800 MU-55HNS/MU-59 Quad

Bundle offer comprising

Mipro ACT-5814A

Digital 4-Channel True Diversity Receiver with Detachable Antennas and Built-In Splitter

Frequency range: 5725 - 5850 MHz
Antenna outputs allow cascading of up to 3 receivers with only one pair of antennas
12 Interference-free channels in group A
24 Interference-free channels in group B1 & B2
Range up to 100 metres
Latency < 1.7 ms
OLED display
Due to the use of FHSS frequency-hopping technology, each channel operates on 4 pre-set hopping frequencies
Programmed algorithm searches frequency band for interference-free frequencies (avoids frequencies of WiFi applications)
Balanced XLR and unbalanced jack outputs
Switchable mix output (when set to ‘MIXED’, the mixed signal is output to CH 2)
Dimensions (W x H x D): 420 × 44 × 180 mm
Weight: 1.5 kg
Colour: Black
Includes power supply and 6.3 mm jack cable

2x Mipro ACT-580T

Digital 5.8 GHz Pocket Transmitter

Frequency range: 5,725 - 5,850 MHz
4-pin mini XLR input with screw lock
Input impedance for microphone and guitar (high/low) and input sensitivity of the microphone used can be adjusted - five levels: +12 dB to -12 dB
3.5 mm mini jack socket for connecting an external mute switch Mipro MJ-70 (optionally available)
Backlit LCD display shows channel, gain, RF output power, mute, battery status, lock and error information
Power supply via two AA batteries or one 18500 Li-ion battery (included)
USB-C port for charging the battery in the housing
Battery life up to 12 hours
Weight: 82 g
Includes rechargeable battery and USB-C charging cable

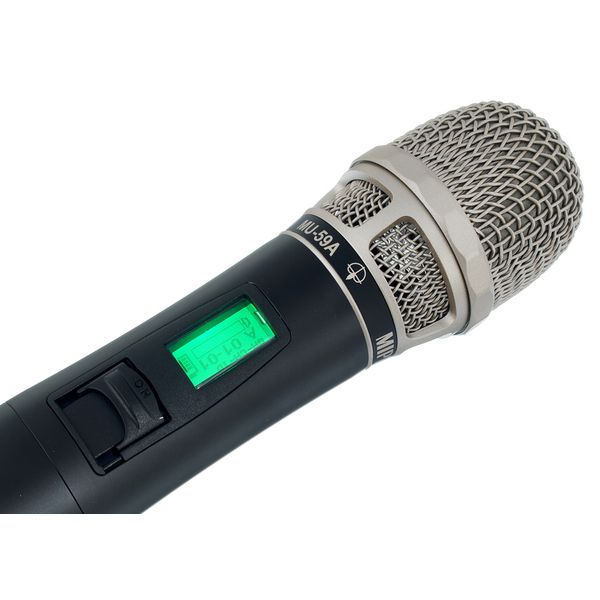

2x Mipro ACT-580H59

Digital 5.8 GHz Handheld Transmitter with Dynamic MU-59 Microphone Capsule

Polar pattern: Supercardioid
Interchangeable capsule system for other optionally available Mipro capsules (also compatible with Shure capsules, for example)
Lockable on/off switch
Various mute modes: Manual, Auto, Off
LCD display with indication of battery status, group and channel
Power supply via 2 x AA batteries or 1 x 18500 Li-ion battery (included)
USB-C port for charging the battery in the housing
Battery life up to 12 hours
Weight: 260 g
Including rechargeable battery, USB-C charging cable and colour coding rings

2x Mipro MU-55HNS-3M

Omnidirectional Headset Microphone

Sweat resistant
4.5 mm Electret condenser capsule
For vocal and speech applications
Very robust, flexible microphone neck
Microphone placement on the left and right possible
Sensitivity: -56 dBV/Pa
Max. sound pressure level: 142 dB
Connection: screw-on 4-pin mini XLR (for all MIPRO pocket transmitters)
Cable length: 150 mm
Weight: 25 g
Colour: Beige
Includes windscreen, bag and 3 neckbands in different sizes

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since November 2024
Item number 604185
Sales Unit 1 piece(s)
Transmission technology digital
Channels Handheld Transmitter 2
Capsule Type Dynamic
Pattern Super Cardioid
Receiver Type Stationary
Frequency 5850 MHz – 5725 MHz
Output XLR
Charging System Optional
Integrated Battery No
Dante No
Headset Cannels 2
Diversity Yes
Transmission Format digital
Interchangeable Capsule Yes
Receiver Width in mm 420 mm
Receiver Height in mm 44 mm
Receiver Depth in mm 162 mm
Microphone Colour Beige
Receiver Weight in kg 1,6 kg
Earset 2 Ears
Frequency Display Yes
Automatic Frequency Search Yes
Frequency Scan Yes
Mountable Antenna TNC
Removable Antenna TNC
Battery Power Display Yes
Battery Status Monitor Yes
Rackkit Yes
Receiver Weight in Kg 1,6 kg

$2,050

The shipping costs are calculated on the checkout page.

Sales Rank

in Wireless Microphones with Handheld Microphone

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
